The Kabuto (often misspelled “Kubota”) is a drop-in forced-reset (reset-assist) device for AR-15 pattern rifles and AR-pattern pistol-caliber carbines. The name is Japanese for “helmet.”

It is designed to help the trigger reset faster after each shot while remaining semi-automatic — one deliberate function of the trigger per round.

This guide covers what the Kabuto is, how it works, compatibility, installation basics, and common questions. It is not legal advice. Always verify federal, state, and local laws before purchasing or using any rate-enhancing device.

Browse Kabuto and related drop-in devices on the Kubota/BS Squirts Devices page.

What Is a Kabuto?

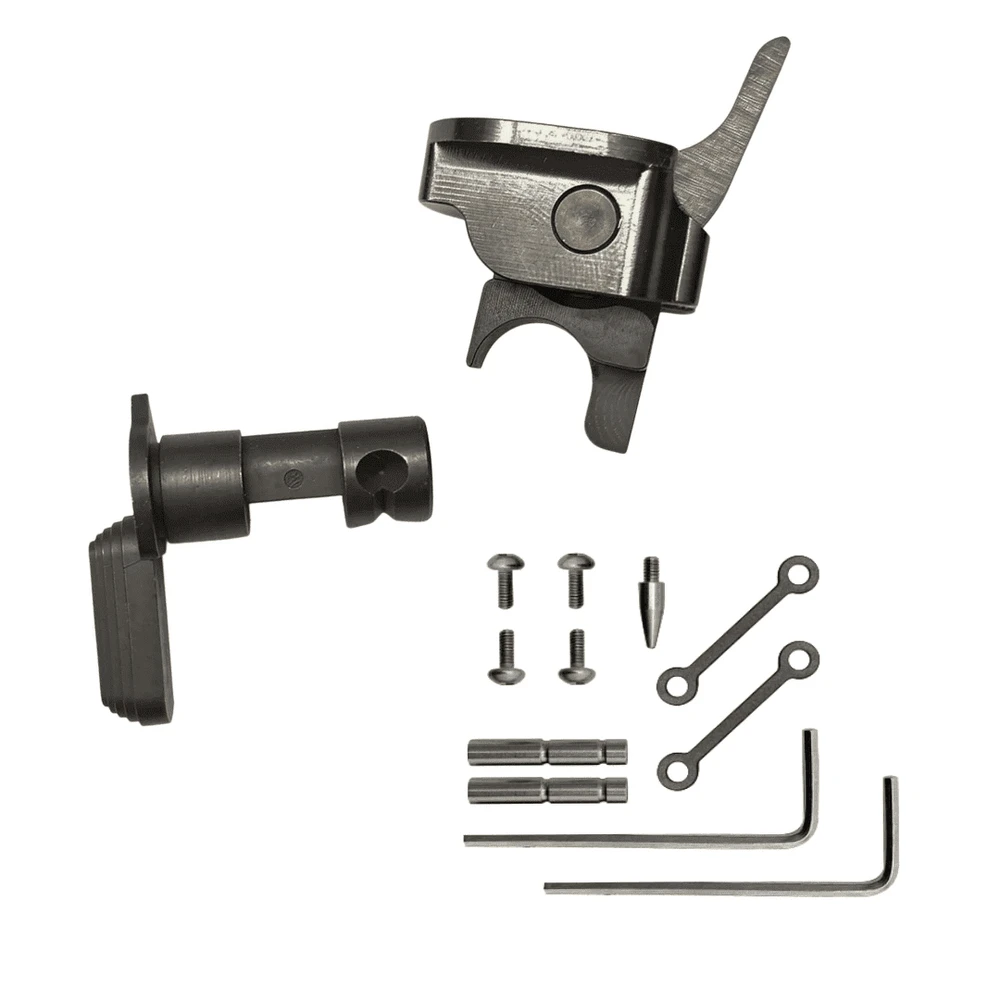

A Kabuto is a drop-in forced-reset device that works with most mil-spec AR-15 lowers. Unlike a full cassette-style Forced Reset Trigger that replaces your entire fire control group, the Kabuto is a more compact assist mechanism that interacts with the bolt carrier group’s rearward movement to help push the trigger forward into the reset position.

Most versions offer a three-position setup (Safe / Semi / Forced Reset). It is not a complete trigger replacement in the same way as a Partisan Disruptor or Rare Breed-style cassette.

How Does the Kabuto Work?

1. You pull the trigger → one round fires.
2. The BCG cycles rearward and interacts with the Kabuto’s mechanism.
3. The device helps force the trigger forward into the reset position.
4. You pull the trigger again for the next shot.

The system still requires a separate function of the trigger for each round. It does not convert the firearm to fully automatic fire.

Kabuto vs Super Safety vs Full Forced Reset Trigger

Compatibility Requirements

Most reliable Kabuto setups need:

• Full-auto profile (M16) BCG: Required for proper engagement. Browse our M16 Bolt Carrier Groups.
• Proper buffer weight: Start with the H3 - M16 Full Auto Slide Dead Blow Buffer - GEN2. For suppressed or overgassed rifles, the KYNSHOT Hydraulic AR15 H3 Buffer - RB5000HP is preferred.
• Low-shelf lower preferred: High-shelf lowers can interfere. Our Myth Industries Billet AR-15 Lower works well.
• Anti-walk pins: Recommended. See our Anti-Walk Pins category.

Kabuto in a .300 Blackout Build

.300 Blackout works well with a Kabuto when properly supported:

• Use the Kynshot AR15 Hydraulic Buffer (RB5000HP).
• Pair with the KAK DBC Bolt Carrier Group.
• An adjustable gas block helps with subsonic/supersonic or suppressed tuning.

Kabuto in a 9MM / AR-9 Build

AR-9 builds need extra attention. See our Forced Reset Trigger in a AR9 Installation Guide.

• Use the PREMIUM Forced Reset Device™ CUT 9MM Bolt Carrier Group.
• Pair with the Kynshot AR9 Hydraulic Buffer (RB5007).

Installation Overview

1. Clear the firearm and separate upper/lower.
2. Remove the existing safety selector (and grip if needed for detent access).
3. Install the Kabuto mechanism per the included instructions.
4. Reinstall the safety and function check thoroughly.
5. Test with dummy rounds, then live fire with the correct buffer and BCG.

Expect 10–20 minutes for a first-time install if you have the right supporting parts.

Common Issues

Dead trigger or no reset: Buffer too light. Upgrade to the H3 GEN2.

Light primer strikes: Bolt bounce. Use the H3 GEN2 or a Kynshot Hydraulic Buffer.

Selector or lever binding: Check detent and centering. High-shelf lowers can cause issues.

Final Thoughts

The Kabuto is a relatively compact drop-in option for shooters who want faster reset assistance without a full cassette trigger. Reliable function depends on a proper M16-profile BCG and the correct buffer weight. The H3 GEN2 Slide Dead Blow Buffer is our most common recommendation.

Disclaimer: This article is for informational purposes only and does not constitute legal advice. Firearm laws change frequently. Verify all applicable federal, state, and local regulations before purchasing or using any Forced Reset Device. Always follow safe firearm handling practices.
